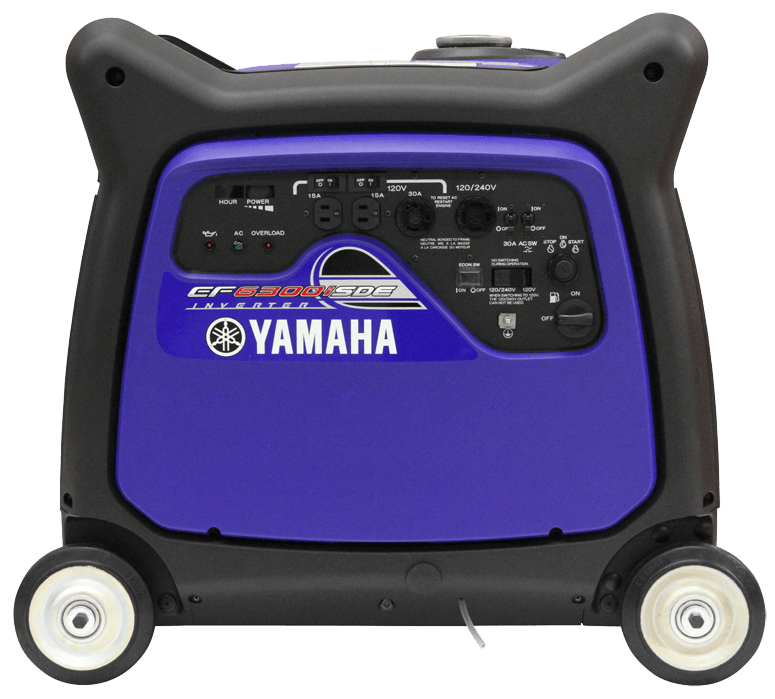

Yamaha EF6300iSDE Inverter

  • Image 1
Price:
$3,291.59
Brand:
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Free Shipping
Quantity:
Bookmark and Share


Product Description

FEATURES

  • Powered by Yamaha's MZ360; 357cc, air-cooled (fan assist), OHV, 2-valve, 4-stroke, single cylinder engine with electronic transistor controlled (TC) ignition.
  • Super convenient electric starting
  • Pulse Width Modulation provides super "clean" power. As clean or cleaner than you get from a household receptacle.
  • Rated AC output for continuous use is 5,500 watts / 45.8 amps @ 120 volts & 5,500 watts / 22.9 amps @ 240 volts.
  • Bonded neutral.
  • Dual 120 / 240 volt output offers excellent versatility.
  • Non-fuse type circuit breaker (NFB) prevents internal circuit damage in the event of an over load.
  • Smart Throttle / Economy Control automatically adjusts engine speed to match the load, saving fuel, reducing noise and engine wear.
  • Yamaha's Noise Block body design features a moulded casing and noise-absorbing glass wool to provide ultra quiet operation.
  • Auto choke for easy, no hassle starting
  • Yamaha's Oil Watch Warning System automatically shuts off the engine when oil level is low and will not re-start until oil is added, preventing costly engine damage and enhancing long-term durability.
  • Indicator lights for AC power output, low oil and AC overload
  • Power meter indicates the amount of power being used and what's still available.
  • Hour meter displays the accumulated running time in order to monitor service intervals
  • Washable foam air filter reduces maintenance costs
  • Cleanable spark arrestor stops the possibility of sparks from exiting the exhaust.
  • On-off fuel petcock lets you shut off the gas to run the carb dry for storage, helping to prevent stale fuel problems, which are becoming more common with ethanol based fuels.
  • Large fuel filler hole. Fuel gauge is standard.
  • Built in wheels (4), with parking brake, provides greater portability.
  • Twin bar body design makes moving the unit easier and provides solid points for an anti -theft cable.
  • CSA approved (Canadian Standards Association)
  • EPA & CARB Emission Engine Durability Rating. Yamaha generators have the longest emission engine durability ratings issued by the Environmental Protection Agency and the California Air Resources Board.
  • 3-year warranty for "residential / home" use or "commercial use."



Generator
Type Inverter type
Rated voltage (V) 120/240
Frequency (Hz) 60
Rated output (kVA) 5.5
Max output (kVA) 6.3
DC output -
Engine
Type MZ360:4-stroke
OHV pressure air cooled
Starting system Electric *1
General
L*W*H (mm) 780*616*692
Dry Weight (kg) 91.0
Fuel tank capacity(full)(l) 17.0
Operating Hours
(Hr/ 1/4 load)
13.3
(Economy control system : ON)
Operating Hours
(Hr rated load)
5.0
(Economy control system : ON)
Noise Level (db A)(7m) 58.0(1/4 load)-64.0(Rated load)
(Economy control system : ON)
Features
Voltage regulator Inverter
Circuit breaker system Computer controlled
Fuel level gauge
Oil level warning system
Pilot lamp
Economy control system
Voltage fluctuation
Instantaneous Less than 25%
Setting Less than 1%
Setting time Within 2 sec.
Frequency stability Less than 0.1Hz
Waveform distortion Less than 4.0%
Acces.
Transportation kit Standard
DC charging leads ×
Wireless Remote Control Kit Option
