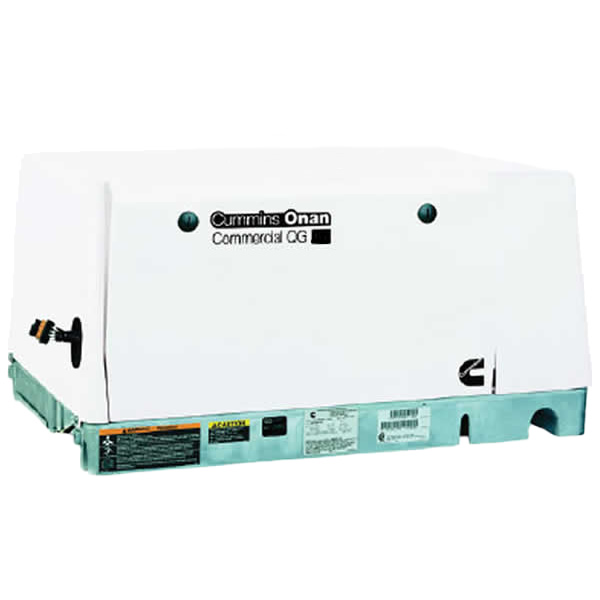

7.0 kW QG EVAP Commercial Mobile Generator (120/240V - 30A)
•Quietest and lowest vibration generator set in its class
•Designed for tough commercial applications - Runs (2) ACs
Cummins Onan 4-Cycle OHV V-Twin Engine (.7 Gal/H @ 1/2 Load)
•Allows for start & run without AC output to conserve fuel
Microprocessor Controlled w/ Automatic Safety Shutdowns
•Digital voltage regulatotion provides stabilty as loads change
•Self-diagnostic capability to simplify troubleshooting
•Low oil pressure, over/under speed, and overcurrent protection
Sound-Attenuating Enclosure w/ Thru Flow Cooling System
•Lowers noise levels while providing cross-flow cooling
NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
Integral Control Panel w/ Waterproof Remote Connector
•Instant one-touch stop switch & Remote disable/continuous stop capability
4-Point Mounting System w/ Coil Spring Vibration Isolators
•Universal mounting tray allows for easy installation
Added Features -
•Added Features - Auto Choke, Full-Flow Oil Filter & Long Life Fuel Filter
2-Year Limited & 5-Year Drive Warranty
Model | ||
Model Number: | 7.0 HGJAE-6758 | |
Manufacturer: | Cummins Onan | |
Engine | ||
Brand: | Cummins Onan | |
Starting System: | 12-Volt Button Start | |
HP/CC: | 653 cc | |
Consumer Engine Warranty: | 2 Years | |
Commercial Engine Warranty: | 2 Years | |
Engine RPM: | 2880 RPM | |
Low Oil Alert/Shutdown: | Yes | |
Cast Iron Sleeve: | Yes | |
Product Specs | ||
Voltage | 120/240 Single-Phase | |
Frequency: | 60 Hertz | |
Alternator: | Brush | |
Auto Voltage Regulation: | Yes | |
Fuel Type | Gasoline | |
Rated Amps: | 29 Amps @ 240 Volts (Single Phase) | |
Decibel Rating @ 7m: | Not Measured by Manufacturer | |
Hour Meter: | Yes | |
Circuit Breaker | 2-Pole - 30A (120/240V) | |
Decibel Rating @ 3m: | 70 db(A) | |
Overview | ||
Weight: | 290 Lbs. (131.54 kilograms) | |
Dimensions: | 33.6"L x 22.2"W x 16.7"H (85.34 x 56.39 x 42.42 cm) |
|
Consumer Warranty: | 2 Years | |
Commercial Warranty: | 2 Years |
