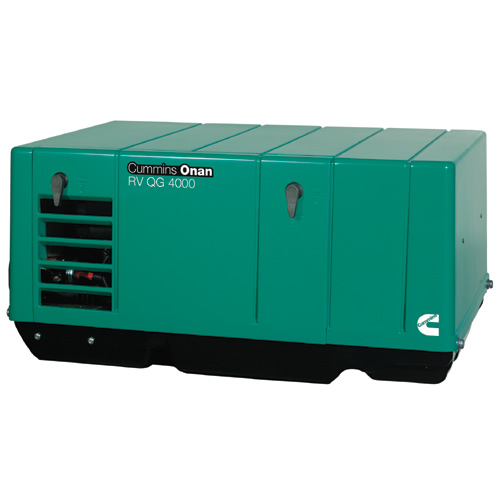

4.0 kW Gasoline Powered RV Generator (Model 26100)
•Enough power to run a 15,000 BTU AC (30A 1-Pole Breaker)
Designed For Use With Multiple Applications
•Fifth wheels, travel and sport utility trailers
Cummins Onan 4-Cycle OHV Engine (.5 Gal/H @ 1/2 Load)
•Provides quiet operation w/ excellent fuel efficiency
Microprocessor Controlled
•Digital voltage regulator prevents damaging voltage spikes
•Provides added protection from overloads and faults
Sound-Attenuating Enclosure
•Lowers noise levels while providing cross-flow cooling
Control Panel w/ LED Status Indicator Light
•Start-Stop/Prime rocker switch
•Provides set diagnostics
USDA Forest Service Approved Spark Arrestor Muffler
NON EVAP MODEL- Generator Fuel Must Come from Chassis Fuel Tank
Added Features
•Magnetic circuit breaker & fused DC circuits (to protect wiring)
•125" generator set output leads
3 Year / 2000 Hour Warranty
Model | ||
Model Number: | RV QG 4000 | |
Manufacturer: | Cummins Onan | |
Engine | ||
Brand: | Cummins Onan | |
Starting System: | 12-Volt Button Start | |
HP/CC: | 304 cc | |
Consumer Engine Warranty: | 3 Years | |
Commercial Engine Warranty: | Not Available | |
Engine RPM: | 3600 RPM | |
Cast Iron Sleeve: | Yes | |
Product Specs | ||
Voltage | 120 Single-Phase | |
Frequency: | 60 Hertz | |
Alternator: | Brush | |
Auto Voltage Regulation: | Yes | |
Fuel Type | Gasoline | |
Rated Amps: | 33 Amps @ 120 Volts (Single Phase) | |
Min. Air Inlet (Front) | 7.2" x 5.1" | |
Min. Air Outlet (Bottom) | 9.6" x 3.8" | |
Overview | ||
Weight: | 172 Lbs. (78.02 kilograms) | |
Dimensions: | 30"L x 19.7"W x 14.4"H (76.20 x 50.04 x 36.58 cm) |
|
Consumer Warranty: | 3 Years |
