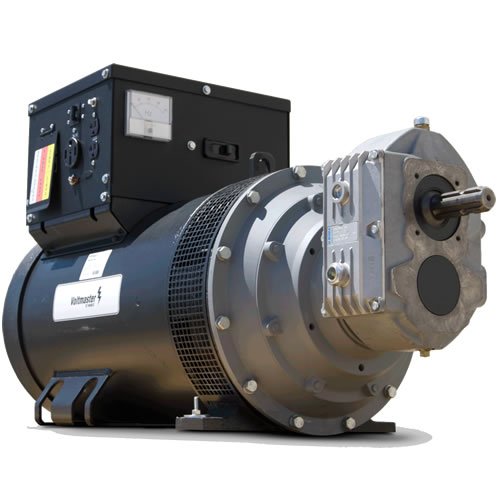

Convert Your Tractor Into a Generator
•Use your tractor engine to generate electricity
•Requires at least 200 PTO HP
Multiple Applications
•Generate electricity to power tools on the farm or ranch
•Backup your home, barn or buildings during a power outage
1800 RPM Brushless Alternator w/ Automatic Voltage Regulator
•Produces clean and safe electricity for sensitive electronics
Frequency Meter
•Monitor and protect your generator and tools
Standard 1-3/8” Six Spline w/ Helical Gears
•Connect tumbling bar (sold separately) between tractor and PTO
Added Features
•Full Power Anderson Style Receptacle
•PTO safety shield
•Lifting eye
•Circuit Breaker not included
Product Must be mounted to a trailer or concrete slab
Model | ||
Model Number: | PTO110-3 | |
Manufacturer: | Voltmaster | |
Made in USA: | Unknown | |
Product Specs | ||
Voltage | 120/240 Three-Phase | |
Frequency: | 60 Hertz | |
Tractors HP/CC: | 200() HP | |
PTO RPMs: | 1000 RPM | |
Rated Watts | 100,000 Watts | |
Surge Watts | 200,000 Watts | |
Rated Amps: | 301 Amps @ 240 Volts (Three Phase) | |
Auto Voltage Regulation | Not Necessary | |
Overview | ||
Weight: | 930 Lbs. (421.85 kilograms) | |
Dimensions: | 41.5"L x 18"W x 29.75H (105.41 x 45.72 x 75.57 cm) |
|
Consumer Warranty: | 5 Years | |
Commercial Warranty: | 5 Years |
