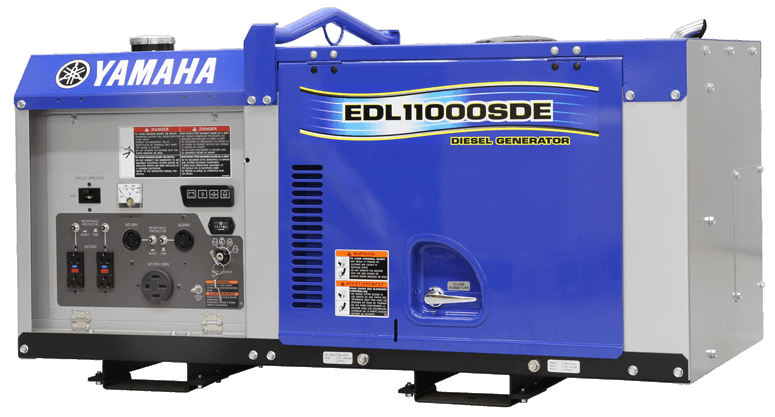

Yamaha EDL11000SDE Diesel

  • Image 1
Price:
$5,090.40
Brand:
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Free Shipping
Quantity:
Bookmark and Share


Product Description

Features

  • Powered by D722 vertical type diesel engine; 719cc, liquid-cooled (rad with cooling fan), three cylinder, 4-stroke diesel engine with electronic ignition. Max power is 12.2 kW or 16.4 hp.
  • Compact and lightweight design... smallest and lightest in its class
  • Key operated electric starting
  • Dual 120 & 240 volt output
  • Rated AC output for continuous use is 10 kVA (10,000 watts) / 83.3 amps @ 120 volts & 41.7 amps @ 240 volts
  • Generator unit is directly connected to the engine eliminating the need for reduction gears.
  • External ground terminal
  • Neutral bonded to frame
  • Skewed rotor keeps waveform distortion to a minimum
  • Run time at rated load is 7 hours
  • Dual Ground Fault Interrupter Circuit receptacles for added safety
  • Cooling fan is driven off the crankshaft for reduced wind noise
  • High capacity radiator
  • Liquid-cooling maintains consistent performance and reduces mechanical engine noise.
  • Large capacity muffler helps to reduce exhaust noise.
  • 100 hour oil change cycle
  • Convenient user-friendly control panel
  • Large opening maintenance hatch for easy access to oil filter, air filter, fuel filter, battery etc.
  • Dedicated terminals for easy connection to Automatic Transfer Switches (ATS)
  • Main breaker system protects against large amounts of excess current
  • Separate sub-circuit breakers for each GFIC receptacle protects against small amounts of excess current
  • Warning lights for low battery, low oil pressure and coolant temperature
  • Glow plug timer indicator light
  • Automatic engine shutdown system in the event of low oil pressure or engine over heating
  • Large size, washable, "no tools required" dual stage air filter
  • Convenient exterior drain plugs for oil and coolant
  • 28 litre fuel tank means extended run times
  • Large fuel filler hole and fuel gauge
  • Hour meter
  • Heavy duty lifting hook and fork lift slots
  • Low emission EPA Tier 2 compliant
  • CSA approved (Canadian Standards Association)
  • 3-year warranty for "residential / home" use or "commercial use."



Generator

Type Brushless, Syncronous, AC generator
Maximum AC Output (watts / amperes) 11 kW (11,000 W)
Rated AC Output (watts / amperes) - Continuous Use 10 kV / 10,000 W / 83.3 A @ 120 V & 41.7A @ 240 V
AC Voltage & Frequency (HZ) 120 & / 240 V / 60 HZ
Neutral Bonded to frame
AC Receptacle* L5 30 (30A - 125V) / L6 30 (30A - 250V) / 14R 50 (50A - 125/250V) / 5 - 20R GFCI x 2
Engine
Model D722 diesel; 719cc, liquid-cooled (with rad & cooling fan), three cylinder, 2-valve, 4-stroke diesel
Rated Output Engine / Engine RPM 12.2 kW (16.4 hp) / 3,600 rpm
Starting System / Ignition System Electric starting / Electronic ignition
Recommended Fuel Ultra low sulfur, Diesel fuel No.2-D (above -10C) / Diesel fuel No.1-D (below -10C)
Engine Oil Capacity 3.4 L
General
L x W x H mm (in) 1281 x 618 x 698 mm (50.4 x 24.3 x 27.5")
Dry Weight 295 kg (650 lbs.)
Fuel Tank Capacity (L) 28
Operating Hours (@ rated load) 7 hrs
Noise Level (@ 7 metres) 69 dB
Technical Features
Non-Fuse Circuit Breaker System (NFB) Standard
Sub Circuit Breaker For Each Receptacle Standard
Dual 120 & 240 Voltage Standard
Pilot Lamp (AC output) Standard
Oil Watch Warning System Standard
Oil Pressure Warning System (Engine Shut Down) Standard
Coolant Temperature Warning System (Engine Shutdown) Standard
GFCI Protected Receptacle Standard
Hour Meter Standard
Fuel Level Gauge Standard
Volt Meter Standard
