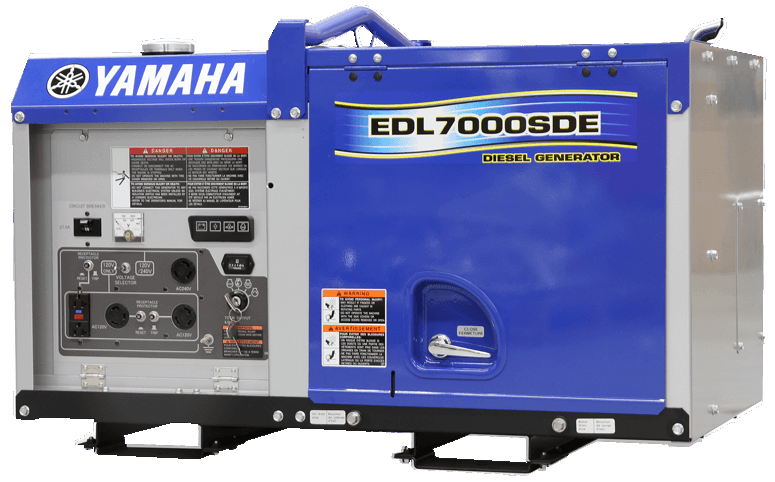

Yamaha EDL7000SDE Diesel

  • Image 1
Price:
$4,595.50
Brand:
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Free Shipping
Quantity:
Bookmark and Share


Product Description

Features

  • Powered by Z482 vertical type diesel engine; 479cc, liquid-cooled (rad with cooling fan), twin cylinder, 4-stroke diesel engine with electronic ignition. Max power is 8.1 kW or 10.9 hp.
  • Compact and lightweight design... smallest and lightest in its class
  • Key operated electric starting
  • Dual 120 & 240 volt output
  • Rated AC output for continuous use is 6.5 kVA (6,500 watts) / 54.2 amps @ 120 volts & 27.1 amps @ 240 volts
  • Generator unit is directly connected to the engine eliminating the need for reduction gears.
  • Neutral bonded to frame
  • External ground terminal
  • Run time at rated load is 10 hours
  • Ground Fault Interrupter Circuit receptacle for added safety
  • Cooling fan is driven off the crankshaft for reduced wind noise
  • High capacity radiator
  • Liquid-cooling maintains consistent performance and reduces mechanical engine noise.
  • Large capacity muffler helps to reduce exhaust noise.
  • 100 hour oil change cycle
  • Convenient user-friendly control panel
  • Large opening maintenance hatch for easy access to oil filter, air filter, fuel filter, battery etc.
  • Dedicated terminals for easy connection to Automatic Transfer Switches (ATS)
  • Main breaker system protects against large amounts of excess current
  • Separate sub-circuit breaker for GFIC receptacle protects against small amounts of excess current
  • Warning lights for low battery, low oil pressure and coolant temperature
  • Glow plug timer indicator light
  • Automatic engine shutdown system in the event of low oil pressure or engine over heating
  • Large size, washable, "no tools required" dual stage air filter
  • Convenient exterior drain plugs for both oil and coolant
  • 28 litre fuel tank for extended run times
  • Large fuel filler hole and fuel gauge
  • Hour meter
  • Volt meter
  • Heavy duty lifting hook and fork lift slots
  • Low emission EPA Tier 2 compliant
  • CSA approved (Canadian Standards Association)
  • 3-year warranty for "residential / home" use or "commercial use."

Specification Sheet

Generator
Type Brushless AC Generator Single Phase
Rated voltage (V) 120/240
Frequency (Hz) 60
Rated output (kVA) 6.5
Max output (kVA) 7
Engine
Engine speed (rpm) 3600
Type Liquid-cooled, 4-stroke diesel engine
Displacement
(cm3)
479
Starting system Electric *1
General
L*W*H (mm) 1066*618*698
Dry Weight (kg) 235
Fuel tank capacity(full)(l) 28
Operating hours (Hr) 10
Noise Level (db A)(7m) 66.5
