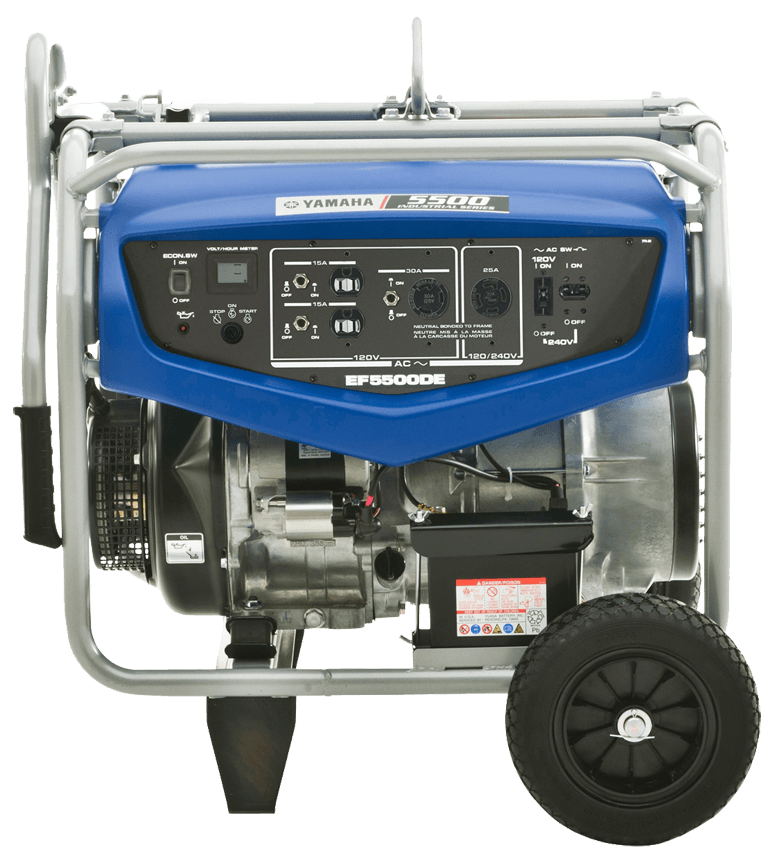

Yamaha EF5500DE

  • Image 1
  • Image 2
Price:
$1,131.20
Brand:
Weight:
0.00 LBS
Availability:
In Stock
Shipping:
Free Shipping
Quantity:
Bookmark and Share


Product Description

Features

  • Powered by Yamaha's MZ360; 358cc, air-cooled (fan assist), OHV, 2-valve, 4-stroke, single cylinder engine with transistor controlled (TC) ignition.
  • Lightweight piston and offset cylinder design reduce frictional losses for improved fuel economy.
  • Electric starting backed up by manual recoil with an auto decompression system for a light recoil starter pull.
  • Auto choke for easy, no hassle starting
  • Maintenance-free brushless alternator offers superior reliability and reduced maintenance.
  • Dual 120 & 240 volt output makes the EF5500DE very versatile
  • Damper Winding alternator reduces wave form distortion for "cleaner" power (power is almost as clean as an inverter)
  • Non-fuse type circuit breaker (NFB) prevents internal circuit damage in the event of an over load.
  • Rated AC output for continuous use is 4,500 watts / 36 amps @ 120 volts & 4,500 watts / 18.7 amps @ 240 volts
  • Economy Control System (when turned on) lowers the engine rpm when there is no load to conserve fuel and reduce noise and engine wear.
  • Yamaha's Oil Watch Warning System automatically shuts off the engine when oil level is low and will not re-start until oil is added, preventing costly engine damage and enhancing long-term durability.
  • Multi-function digital volt and hour meter
  • Electrical "noise" suppressor reduces electrical interference with TVs and radios.
  • Easy access, washable foam air filter reduces maintenance costs
  • Easy access oil drain plug
  • Cleanable spark arrestor stops sparks exiting from the exhaust
  • On-off fuel petcock lets you shut off the gas to run the carb dry for storage, helping to prevent stale fuel problems, which are becoming more common with ethanol based fuels.
  • Large fuel fill hole for easy filling. Fuel gauge is standard
  • Rubber vibration isolation mounts reduce vibration for smoother operation and reduced noise.
  • Rugged perimeter steel frame protects the generator, engine and battery from damage.
  • Folding handle and lift hook for improved portability
  • Never flat, non-pneumatic tires mounted to rugged steel axles.
  • Low maintenance MF style battery is included. Battery is positioned inside the frame for extra protection. Maintaining your battery's state of charge during extended periods of storage is essential to insure the maximum service life. Any battery, regardless of the type, should be charged (with the correct type of charger) at least every 2 months when not being used.
  • CSA approved (Canadian Standards Association)
  • Meets or exceeds EPA & CARB Tier 3 emission standards
  • 3-year warranty for "residential / home" use or "commercial use."



Type
Dual voltage, Brushless, AC Generator
Maximum AC Output
5500 watts
Rated AC Output
4500 watts
Rated / Maximum AC Current
Rated / Maximum AC Current 36.0 / 44.0 amps @ 120V - 18.75 / 22.9 amps @ 240V
Engine
MZ360
Displacement
358cc
Overall Length
31.5 in
Overall Width
28.4 in
Overall Height
29.1 in (handle down)
Dry Weight
D = 212 lb, DE = 234 lb
Fuel Tank Capacity
6.9 gal
Continuous Operation at Rated Load
9.0 hr
Noise Level
74.1 dBA
Warranty
3 Years Limited Warranty
